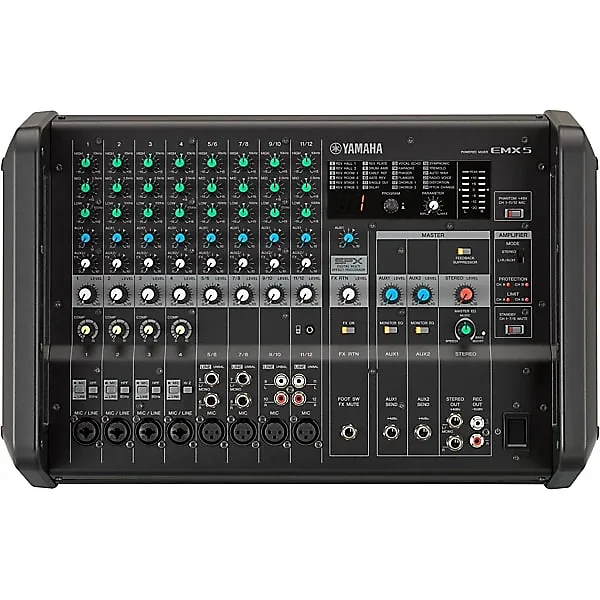

Yamaha EMX5 12-Input Powered Mixer With Dual 630W Amps

Yamaha EMX5 12-Input Powered Mixer With Dual 630W Amps

$699.99

Yamaha EMX5 12-Input Powered Mixer With Dual 630W Amps

SKU: EMX5 Categories: , Tags: , , UPC: 00889025106221

Description

Yamaha EMX5 12-Input Powered Mixer With Dual 630W Amps

The EMX5 powered mixer was designed for musicians, performers or public speakers who put a premium on sound quality and convenient operation, and are ready to take their sound reinforcement to the next level. Add speakers and a microphone, and you have a fully functioning, extremely portable and reliable sound system with all the tools you need to mix, process and deliver your audio just the way you want, anywhere you want.

Class-D Amplifier
The EMX5 features a built-in high-efficiency power amplifier of 2 x 630W of output power. Despite its low power consumption, this amp is capable of very high volume output, yet still remains surprisingly lightweight. It is equipped with onboard overload protection function to improve reliability and prolong component life and performance quality.

Complete Range of Input & Output Channels
The EMX5 is equipped with four mono input channels and four mono/stereo input channels, allowing up to eight microphones and line-level devices, such as keyboards and portable playback device to be connected to each channel. In addition, channel 4 can be used with Hi-Z inputs to connect instruments, such as guitars or basses directly. It is also equipped with 2 AUX SEND connections for a monitoring system or external effect devices, REC OUT unbalanced RCA pin output jacks to connect an external recorder, and STEREO OUT TRS phone jacks to output the mixed stereo signal.

Onboard Feedback Suppressor
EMX5 is equipped with a Feedback Suppressor that utilizes a unique Yamaha digital technology to instantly eliminate annoying feedback with the single switch of a button, which utilizes a seven-band notch filter.

3-Band Equalizer Control
With individual knobs you can adjust the [HIGH], [MID] and [LOW] audio frequencies. You can operate instantly turning the control to amplify (boost) and attenuate (cut) the corresponding frequency band.

1-Knob COMP
EMX5 is equipped with the popular 1-knob COMP function used in MGP and MG series models. By simply operating a single control, it is possible to get optimal compression for vocals and instruments. As the [COMP] control is turned to the right, the threshold, ratio and output gain are adjusted simultaneously.

Comprehensive, Professional Effects and Signal Processing
EMX7/5 are equipped with a powerful, comprehensive DSP section that provides a total of 24 different effects that are in the same league as Yamaha’s famed SPX effect processor series used by professionals. It is possible to add reverb and delay effects that simulate the sound of different performance environments, such as concert halls and small clubs.

Features

Format

  • Analog/digital: Analog
  • Number of channels: 12
  • Busses/groups: 2
  • Aux sends: 2
  • Powered: Yes, 1,420W

Inputs

  • Total inputs: 12
  • Mic preamps: 8
  • XLR/TRS combo jacks: 4
  • XLR only jacks: 4
  • 1/4″ only jacks: 4
  • S/PDIF in: No
  • ADAT/optical in: No
  • RCA in: 2 Stereo pair
  • USB: No

Outputs

  • Total outputs: 2 St, 2 AUX, RCA
  • RCA (unpowered) 1 Stereo pair
  • 1/4” out: 2
  • FireWire No
  • ADAT/optical out: 0
  • SpeakON: 2
  • USB: No

Other Connectivity

  • Connections: Audio
  • MIDI I/O: No
  • Headphone output(s): 1
  • Wi-Fi: No
  • Word-clock I/O: No
  • I/O expansion: No

Onboard effects

  • Compression: Yes
  • Reverb: Yes
  • Delay: Yes
  • Chorus/flange: Yes

Equalization

  • Type: Shelving
  • EQ bands: 3
  • Master graphic: No

Other

  • Width: 18.25″
  • Height: 12.1″
  • Depth: 12.75″
  • Weight: 20.9 lb.
  • Automation: No
  • Fader type: Rotary
  • Motorized faders: No
  • Bundled software: No
  • Rackmountable: Yes
