On-Stage brand Direct Box DB500

On-Stage brand Direct Box DB500


On-Stage brand Direct Box DB500

SKU: DB500 Categories: , , Tags: , , UPC: 659814883837

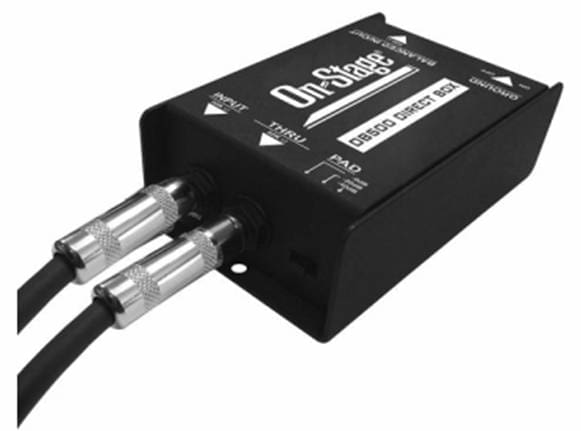

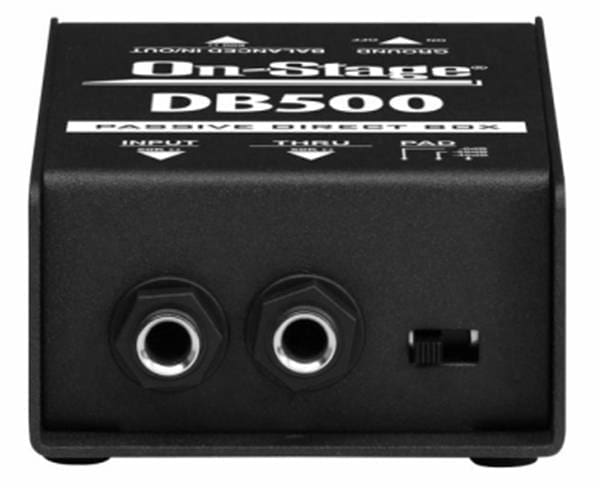

On-Stage brand Direct Box DB500

Passive DI Box

  • Our DB500 Passive DI Box converts any high-impedance 1/4″ source to a low-impedance XLR signal ready to send via a long cable run to a mixer or PA system. Features include low-distortion passive circuitry that doesn’t require power, a -20 dB or -40 dB pad switch to prevent clipping, a ground-lift switch to defeat ground-loop hum, and a throughput connector to pass unaltered signal to a stage amp. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.

    Converts a high-impedance (1/4″) input to a balanced, low-impedance (XLR) output

  • Output signal can be sent via a long cable to a mixer or PA system without frequency loss

  • Passive circuit does not require a power supply or batteries

  • High-quality transformer for low distortion and an isolated signal path

  • Product Attributes
    Application Acoustic guitars, bass guitars, keyboards, and more
    Inputs 1/4″
    Output XLR
    Power Passive/not required
    Pad 20dB, 40dB, Ground Lift: Yes
    Input Impedence 350K Ohms
    Output Impedence 80 Ohms
    Construction Metal
    Dimensions (W)4.75″ x (H)1.375″ x (D)2.875″
    Weight 0.5 lbs.
