Description

Mackie Onyx12 12-Channel Premium Analog Mixer With Multi-Track USB and Bluetooth

The Mackie Onyx12 12-channel premium analog mixer with USB is the ultimate compact solution for live audio, home recording and content creation. Featuring 24-bit/96kHz multitrack recording, award-winning high-gain Onyx mic preamps, and an end-to-end ultralow-noise design, the Onyx12 delivers the pristine sound quality that audio professionals demand. Packed with powerful features, including studio-grade DSP effects, British-style Perkins EQ of the 1960s and ’70s, an easy-to-read full-color display, and integrated recording and playback from an SD card, the Onyx12 gives you the tools you need to capture inspired performances with stunning fidelity.

Premium Onyx Mic Preamps Provide Pristine Sound

The Onyx12 is equipped with eight high-gain, low-noise Onyx mic preamps to provide a clean, transparent signal path for your microphones. Onyx preamps are renowned for their wide frequency response, high headroom, and ability to handle high SPL sources without distortion. With 48V phantom power available on all mic channels, the Onyx12 can power your favorite condenser microphones for studio-quality recordings.

Full Suite of DSP Effects Takes Your Mixes to the Next Level

Shape your sound with the Onyx12’s studio-grade DSP effects, including reverb, delay, chorus, flanger, pitch shifter, and more. With 100 factory presets and 100 user-editable presets, it’s easy to dial in the perfect effect for your mix. Effects parameters are adjustable via the mixer’s full-color display, giving you total creative control.

Flexible Routing Options for Any Application

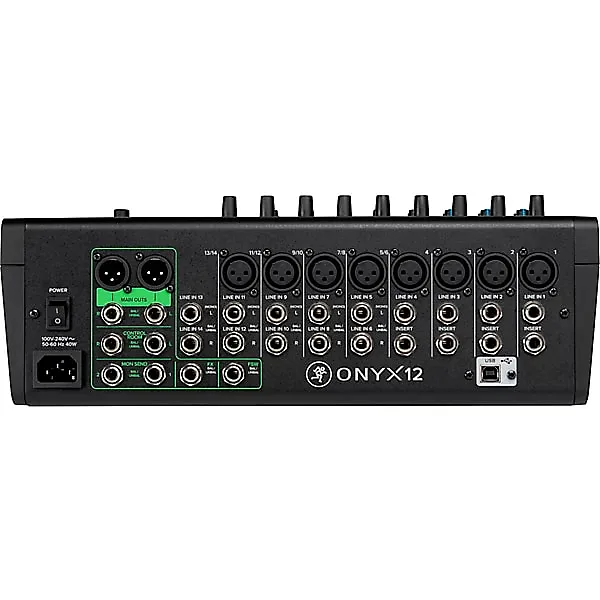

The Onyx12 offers extensive routing capabilities for any mixing need. Each of the 12 input channels features a 3-band Perkins EQ with hard bypass switches, gain control, pan, mute and pre/post fader AUX sends. Channels 1-8 have both XLR mic inputs and 1/4″ line inputs, while channels 9-12 feature 1/4″ line inputs only. Two AUX sends, control room outputs, studio outputs, and dedicated 2-track inputs and outputs provide flexible signal routing for any mixing application from live sound to studio recording.

High-Resolution Recording via USB

Capture your best takes with stunning realism. The Onyx12 offers high-resolution 24-bit/96kHz recording direct to your Mac or PC via USB. Record all 12 input channels plus the main mix simultaneously for maximum flexibility in post-production. Playback audio files directly from your computer through the Onyx12’s studio outputs and control room outputs.

Classic Sound, Modern Performance

• 8 award-winning Onyx mic preamps provide up to 60dB of gain
• Premium analog circuitry delivers studio-quality sound and keeps noise to a minimum
• Analog/USB channel strips with flexible routing
• Legendary Perkins “British style” EQ with sweepable midrange offers classic sounds of the ’60s and ’70s
• Robust digital effect engine, including user-customizable reverbs, delays and more, with a dedicated FX EQ

Record and Playback via SD Card or USB

• High-resolution 14×4 96kHz/24-bit multi-track recording to Mac/PC via USB
• Direct to SD card stereo recording and playback
• Channel-assignable 4-track USB return (two stereo pairs)
• Send your Main Mix to USB via a dedicated switch

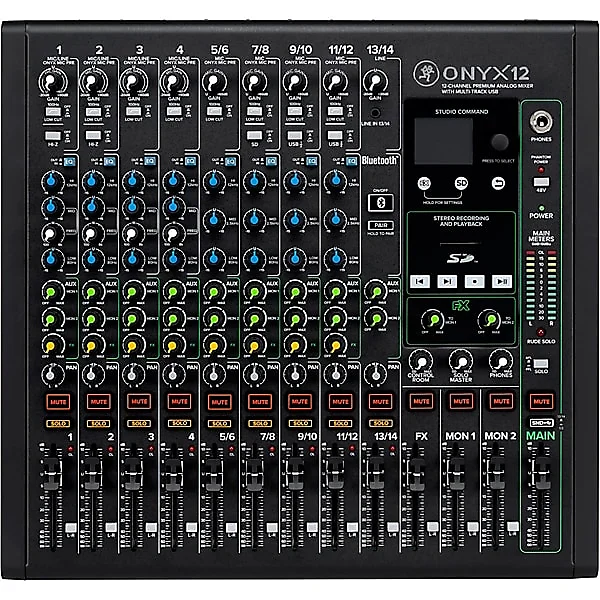

Studio Command-Powerful and Intuitive Full-Color Display and Single-Knob Interface

• Easy navigation of FX parameters, onboard SD recording and playback
• Visually browse files on the SD card via the built-in display
• Dedicated physical buttons for Previous, Next, Record and Play/Pause

Store up to six user FX presets for easy recallProfessional High-Resolution FX Processor

• Utilize built-in effects for live performances, streams and beyond
• Reverb, delay, chorus and more
• Dial in the perfect sound with adjustable parameters and dedicated EQ
• Built-in effects presets provide that finishing touch out of the box

Bluetooth Streaming–Go Wireless

• Pair your Bluetooth-enabled device and stream audio directly to a channel on the mixer
• Streamed audio can be routed to AUX sends and the main mix

Powerful Mixing Toolkit

• 3-band Perkins EQ with on/off hard bypass switch on all channels
• Hi-Z switches allows direct connection of guitars, basses and other instruments
• 100Hz low-cut filter and 48V phantom power on all mic channels
• Stereo 1/8″ input and Bluetooth streaming
• Stereo line inputs
• AUX/Monitor outputs with dedicated per-channel send control
• Dedicated Control Room outputs
• Headphone output with dedicated level control
• L/R Assign switch per channel
• 12-segment stereo meters
• Overload indicators on all channels
• PFL/AFL channel solo
• Footswitch input for FX Mute (footswitch not included)

Hit the Ground Running With Powerful Software and Plug-ins

• Waveform OEM recording software and plug-in bundle
• DAW Essentials Bundle for Waveform OEM, with 16 powerful plug-ins like Equalizer, Compressor, Reverber8 and Limiter

Rugged Chassis and Professional Design

• Backlit Mute and Solo buttons provide a positive tactile feel and clear visual feedback
• Sealed rotary encoder resists dust and grime
• Built-like-a-tank heavy steel chassis
• High-visibility, high-contrast controls
• Rugged, QuickGrip side cheeks offer convenient mobility and protection
• Rackmountable with optional kit
