Fender Standard Series Stratocaster® LH Neck, 21 Medium Jumbo Frets 0994622921 Maple

Description

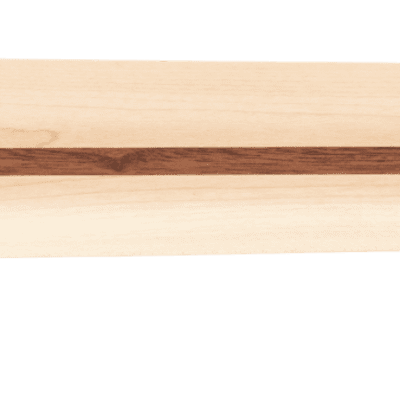

Crafted at our Ensenada, Mexico, manufacturing facility, this genuine left-hand Fender Stratocaster” guitar maple neck features a comfortable “modern C” profile and 9.5″-radius fingerboard with 21 medium jumbo frets.

The nut is pre-slotted with “pilot” string location grooves to make spacing a breeze when performing the final string slot filing, and a satin finish on the back offers smooth playability. For true Fender authenticity, it’s also serialized and stamped, with genuine “Original Contour Body” headstock decal.

This replacement neck is for a Fender or Squier® by Fender guitar.

Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find locations near you in the “Support” section of fender.com.

Product Specs
icon specs
General
Series
Necks
Orientation
Left-Hand
Color
Natural
Instrument Type
Stratocaster®
Country Of Origin
MX
icon specs
Neck
Neck Material
Maple
Neck Finish
Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
Neck Shape
Modern “C”
Neck Thickness
1st Fret – .820” (20.82 mm), 12th Fret – .870” (22.09 mm)
Neck Mounting
4-Bolt
Fingerboard Radius
9.5″ (241 mm)
Fingerboard Material
Maple
Position Inlays
Black Dot
Number of Frets
21
Truss Rod
Standard
Truss Rod Nut
3/16″ Hex Adjustment
String Nut
Synthetic Bone
Nut Width
1.650″ (42 mm)
Nut Material
Synthetic Bone
icon specs
Hardware
Tuner Mounting Config
Dual Guide Pin
sku-image
icon specs
Measurements
Dimensions
3.20×7.20×29.70 IN
Shipping Weight
2.45 LB
Headstock Thickness
.540” (13.71 mm)
Peg Hole Diameter
.397″ (10.08 mm)
Fret Size
Medium Jumbo
Scale Length
25.5″ (64.77 cm)
Shipping Length
29.70 IN
Shipping Height
3.20 IN
Shipping Width
7.20 IN
icon specs
Miscellaneous
Commodity Code
9209940000
Style
Modern
Unique Features
Each nut is pre-slotted with “pilot” string location grooves to make spacing a breeze when performing the final string slot filing. (Please note: Final string slot filing and nut shaping modification is required to ensure proper fit and performance.)
